Concrete and 3d Printing Technology
A cutting-edge and difficult area of research, 3D concrete printing in building applications combines the expertise of conventional construction with digital manufacturing. The industry may decide to focus on this area in the near future due to the elimination of formwork and a number of other significant advantages. Academic study and commercial applications in this field are receiving more attention.
Concrete
Cement, water, fine and coarse aggregates are combined in the proper ratios to create concrete. It is one of the crucial materials in civil engineering and is used extensively in building, flood control, bridges, roads, trains, and urban infrastructure. The issues of high pollution as well as high energy consumption in the preparation and application processes have risen in prominence with the rise in demand for concrete, limiting the green, healthy, and environmental sustainability of concrete.
Concrete 3d Printing
Buildings, homes, or construction components can now be fabricated in entirely new shapes that were previously impractical using conventional concrete formwork thanks to a technique called three-dimensional concrete printing (3DCP).

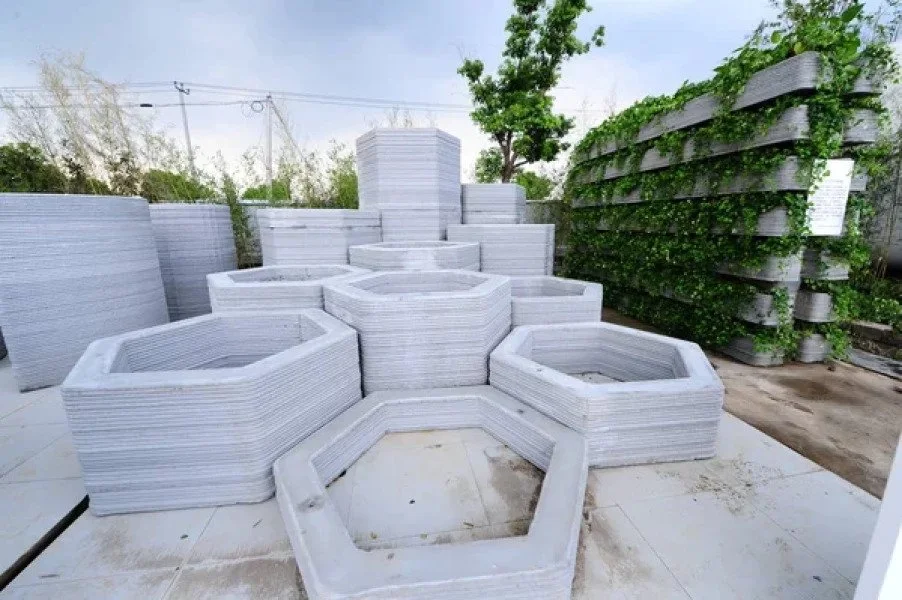

Simply defined, 3D printed concrete is concrete that has been specially mixed to easily flow through the printing machine's nozzle. The foundation of 3D printed concrete constructions is layering, with each layer being put on top of a prior layer of pumped concrete. Until the preferred structure appears, this method is repeated.
With 3DCP, there is no longer a requirement to cast concrete into molds or support structures. It is a considerably speedier and less expensive alternative to traditional construction methods because the curing time of such concrete can be as little as three days and full constructions can be built in only a few hours.
Water, cement, plus aggregates like sand and granite chippings make up the constituents of the concrete mix, which are the same as those used in other concrete combinations. The texture and quality of the dish itself determines how well it turns out. A manageable consistency reduces the possibility of pressure development that could obstruct the nozzle or harm the printing apparatus. As a result, the consistency is retained close to that of the aerated dough for construction purposes.
Since there is no need for a rigid form while building with 3D concrete printing, there is little to no material waste compared to traditional methods. In addition to eliminating the need for strenuous work, the procedure allows for the rapid creation of intricate geometrical structures.
3d Printing Materials
Cementitious Materials
There are many different types of cementing ingredients for 3D-printed concrete, but the most common ones include; geopolymer portland cement, resin, sulphoaluminate cement, and others. The setting time, bonding ability, strength and stability of concrete structures made via 3D printing can all be adjusted in some way by using cementitious materials.
Aggregates
Directly or indirectly, aggregate has an impact on the internal structure of concrete, affecting its viscosity, rheology, stress characteristics before and after hardening, and durability. The aggregate particle diameter significantly affects the properties of the 3D printed concrete. Extrusion nozzle blockage occurs when aggregate particle size is larger. On the other hand, if the aggregate particle size is too tiny, the aggregate’s specific surface area will expand and there will be more paste needed to cover its surface, which will end up making the concrete more brittle and susceptible to cracking.
Mineral Admixtures
The active components of mineral admixtures can significantly increase the density, durability, and service life of the structure as well as the strength of 3D printed concrete components. Fly ash can be efficiently added to printed concrete to increase its durability, mechanical qualities, and operating performance. The primary admixture used to create high-performance 3D printed concrete is fly ash.
Fiber Material
Both the maximum load's elastic modulus and the printed concrete's crack resistance can be greatly increased by fibrous elements. Additionally, it can considerably increase the hardness, ductility, and longevity of printed concrete as well as postpone the deterioration of the product's surface. With the inclusion of polypropylene fiber, printed concrete samples can be kept from peeling off, the extrusion of the concrete in the printer output port can be somewhat optimized, and a uniform and continuous printed sample structure can be obtained.
Factors That Determine The Printability of 3d Concrete
Fluidity
Fluidity is the capacity of concrete materials to smoothly extrude from the discharge port of the print head, readily pumped and transported. It is a vital aspect to take into account while determining printability. Small fluidity is likely to cause equipment blockage and premature mechanical wear. If the fluidity is high, the printed portions are easily collapsed. Fluidity must be adequately adjusted in order to suit printing requirements. Fluidity is mostly affected by water content.
Extrudability
Extrudability is a term used to describe both the difficulty of extruding concrete in three dimensions as well as the consistency and surface quality of the resulting material. The feed pipe and nozzle of the print head’s nozzle can be used to constantly convey the slurry thanks to the research of extrudability. In addition to guaranteeing the integrity of the printing building, it is a guarantee for continued printing construction.
Buildability
Buildability is a term used to describe how much the 3D printed cement-based material deforms and how stable it remains overall after being extruded under its own weight and after the resulting extrusion and gravity of the printed layer.
Importance of concrete 3d printing
When compared to traditional techniques, 3D concrete printing technology has a lot of benefits. Some of them are;
Eco-friendliness
By doing away with the necessity for a framework, 3D concrete reduces the amount of raw resources that would otherwise be wasted. A exact and accurate amount of cement is deposited at a time by the printer needed for 3DCP, reducing CO2 emissions and consequently our carbon footprint.
Ease of Concrete Customization
Since 3D concrete printing technology may be utilized to precisely construct elaborate or asymmetrical patterns, architects and builders can simply add originality and innovation to their projects. Extruded surfaces and a variety of shapes may be produced quickly and with little likelihood of human error. This is as a result of the material being deposited precisely using cutting-edge machinery.
Modern concrete mixtures that incorporate foam exhibit thermal mass properties similar to those of conventional concrete. The adoption of 3D concrete printing technology for mass production may be made practical in the future with similar breakthroughs in concrete mix formula.
Cost Efficient Construction
Castings and frameworks are practically unnecessary with 3DCP because it does not call for manual filling of molds by employees, as is the case with previous methods. By operating at a steady rate and lowering the amount of concrete needed, contractors may also make sure they stay within their budget by saving money on time, materials, and labor. These elements work together to make 3D concrete printing technology economical.
Because it can be built quickly, 3D concrete printing technology is a good option for creating accommodations during emergencies like natural disasters. In addition to increasing resilience of 3D printed concrete structures, the creation of hardened cement paste that is resistant to cracking makes them perfect for large-scale rehabilitation projects.
Increased Safety
Automated construction using 3D concrete printing technology eliminates the need for physical labor on construction sites. Therefore, risky tasks that have an impact on the on-site safety of construction workers, including working at heights, can be completely removed from the construction project.
Limitations of Concrete 3d Printing
Not Appropriate in all Environments
The hydration process of concrete causes unstable reactions to higher temperatures. When pouring concrete in even layers during inclement weather or periods of excessive heat, this provides a difficulty. Tests of 3DCP samples, for instance, have produced less favorable results when conducted in deserts.
Equipment Size Limitations
Printers for 3D concrete printing must be large—ideally, bigger than the project being created. This can necessitate the requirement for specially manufactured printing equipment made for the project.
The development of 3D concrete printing technology is still in its testing stages, during which different equipment, formulations, and approaches prototypes are put to the test. Making automated machinery is an expensive endeavor because equipment is the most expensive part of any 3D concrete printing project.
Legal Constraints
The current limitations of the legal framework governing 3DCP projects have led to uncertainty surrounding the duties and rights of owners, builders, and manufacturers.
The rules need to be improved in areas including safety, social repercussions, the impact on the job market, and environmental effects. From a legal perspective, it is currently unexplored area.
Applications of 3D Concrete Printing Technology
Military
Fox News reports that American Marines have used specialized 3D concrete printers to accomplish two projects. The first project, which was completed in 2018, involved building a footbridge out of reinforced concrete. The first project took 14 hours to finish, whereas the second project took less than 40 hours to create a 500 square foot barracks area.
The United States Is effectively using 3D printed concrete for military projects, and this material has a lot of potential for supporting the military in both active and inactive battle zones.
Housing and Infrastructure
A similar-sized 3D printed house might cost as little as $10,000, compared to the typical cost of $40,000 to build a small American home between 200 and 400 square feet. The residential housing sector could greatly benefit from 3D printing, as costs are anticipated to fall as technology advances.
Single-family homes can be constructed in under 24 hours, as opposed to up to 6 months using traditional building techniques. The first livable 3D-printed concrete homes will be constructed in the Netherlands using 3DCP technology. The buildings will have a mound-like layout similar to that of Fred Flintstone’s home. The first structure in this undertaking, Project Milestone, will be finished in 2019 and will offer thousands of inhabitants affordable homes.
Additionally, 3D concrete has the potential to be used to build safe, affordable housing for people living in poverty. China has successfully constructed an 11,840 square foot, five-story apartment building in Suzhou, so the Netherlands is not alone in its endeavor. Additionally, it took 450 hours to construct the longest 3D-printed concrete bridge in the world in Shanghai.
Similarly, Dubai hopes to become the center of 3D construction by 2030 by using 3DCP technology to build 255 of its major construction projects.
Concrete 3D Printing Techniques
Currently, 3D concrete printing uses three different construction techniques: layered material extrusion, robotic slip forming, and binder jetting.
Binder Jetting
Binder jetting involves layer-by-layer selective application of a liquid binder by a print head to a substrate made of powder. The layer height, which normally ranges between 0.2 and 2 mm, affects the finished part’s speed and amount of detail. After the multilayer manufacturing is finished, binder-jetting requires post-processing processes. The unconsolidated powder must first be manually removed using vacuum tubes and brushes. In microwaves or ovens with controlled humidity and temperature, additional curing stages can also be required. Finally, coatings may be used to increase the surface quality of the part or to consolidate minor surface characteristics. Polyester or epoxy resin are common materials for coatings.
Layered Material Extrusion
A cementitious paste is carefully extruded in 3D printing using a numerically controlled nozzle. Typically, layers range in thickness from 5 mm to a few centimeters. The automatic troweling tool, which flattens the 3D-printed layers and fills in the grooves at the interlayer interfaces to produce a smooth concrete surface, may be used in conjunction with the extrusion nozzle.
Robotic Slip Forming
Due to its additive nature, where material is progressively extruded via an actuator mould that can change its section, the technique only loosely matches the concept of 3D printing. Slip forming is more closely related to formative processes like casting and extrusion since it is a continuous process rather than a discrete or layer-based one like the other 3D printing methods.
